Chapter19 - Google Map

Posted at # SystemDesign

Google Maps

We’ll design a simple version of Google Maps.

Some facts about google maps:

Step 1 - Understand the Problem and Establish Design Scope

Sample Q&A between candidate and interviewer:

We’ll focus on three key features - user location update, navigation service including ETA, map rendering.

Non-functional requirements

Map 101

Before jumping into the design, there are some map-related concepts we should understand.

Positioning system

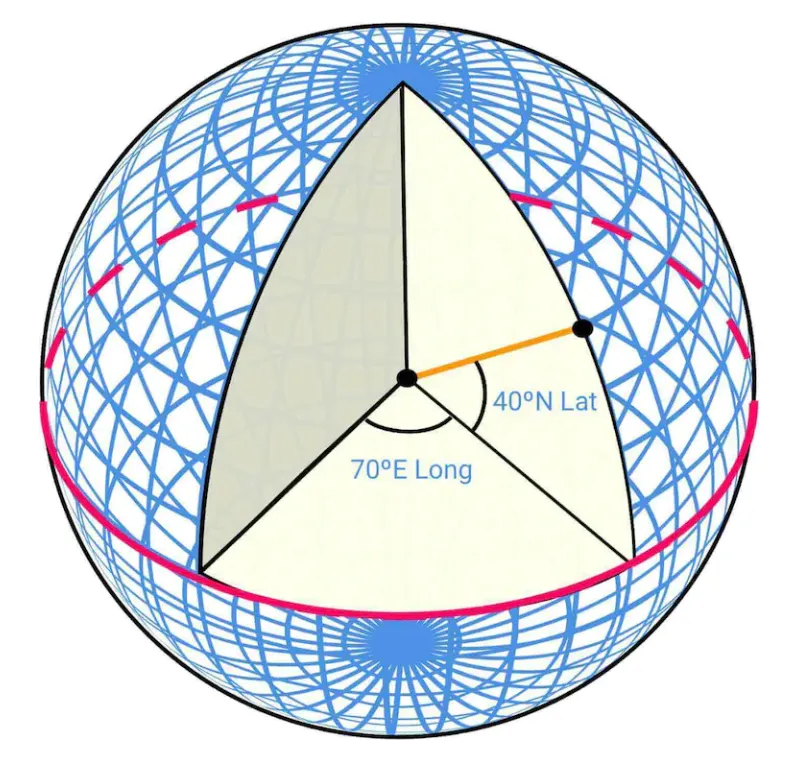

World is a sphere, rotating on its axis. Positiions are defined by latitude (how far north/south you are) and longitude (how far east/west you are): partitioning-system

Going from 3D to 2D

The process of translating points from 3D to 2D plane is called “map projection”.

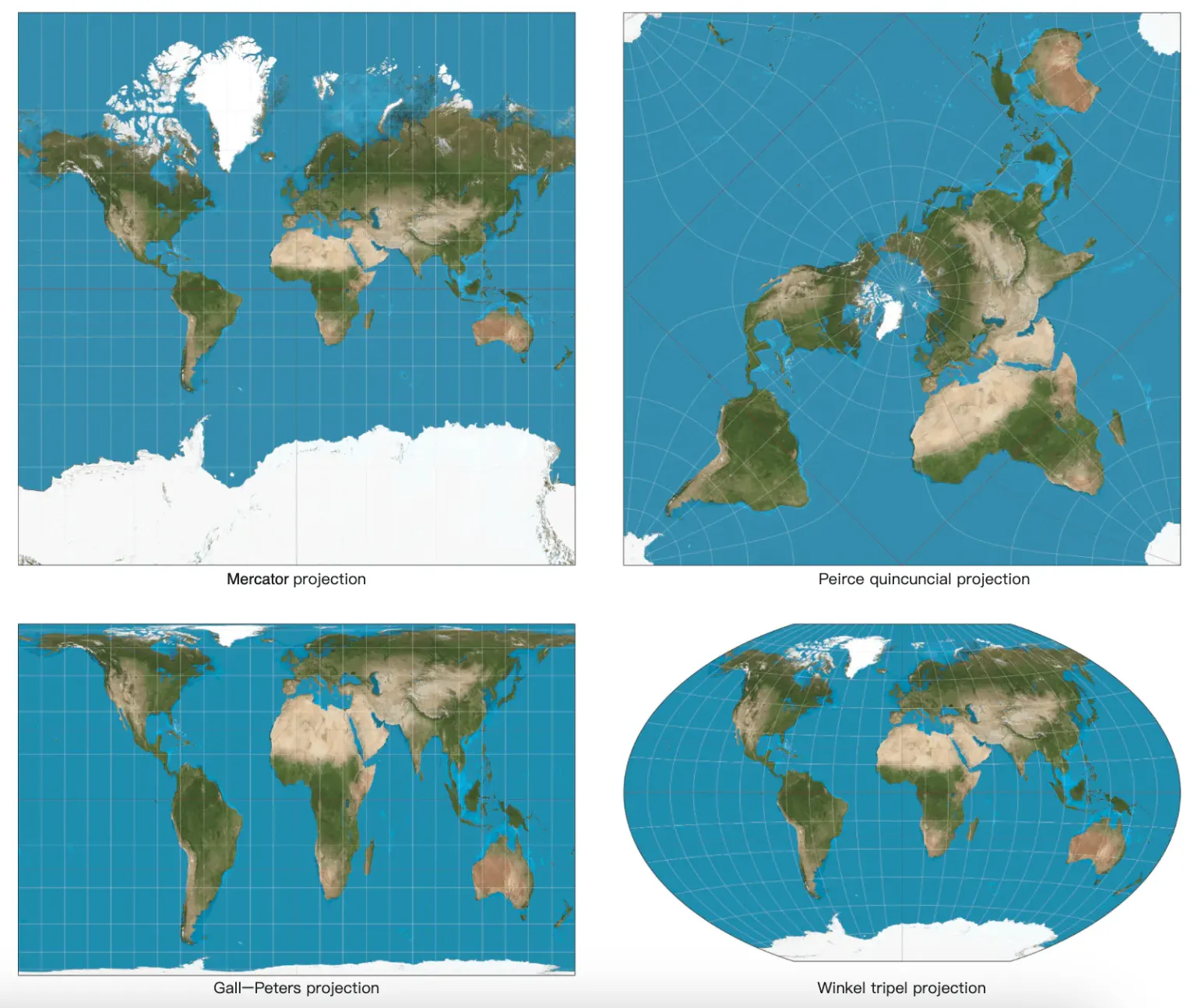

There are different ways to do it and each comes with its pros and cons. Almost all distort the actual geometry. map-projections

Google maps selected a modified version of Mercator projection called “Web Mercator”.

Geocoding

Geocoding is the process of converting addresses to geographic coordinates.

The reverse process is called “reverse geocoding”.

One way to achieve this is to use interpolation - leveraging data from different sources (eg GIS-es) where street network is mapped to geo coordinate space.

Geohashing

Geohashing is an encoding system which encodes a geographic area into a string of letters and digits.

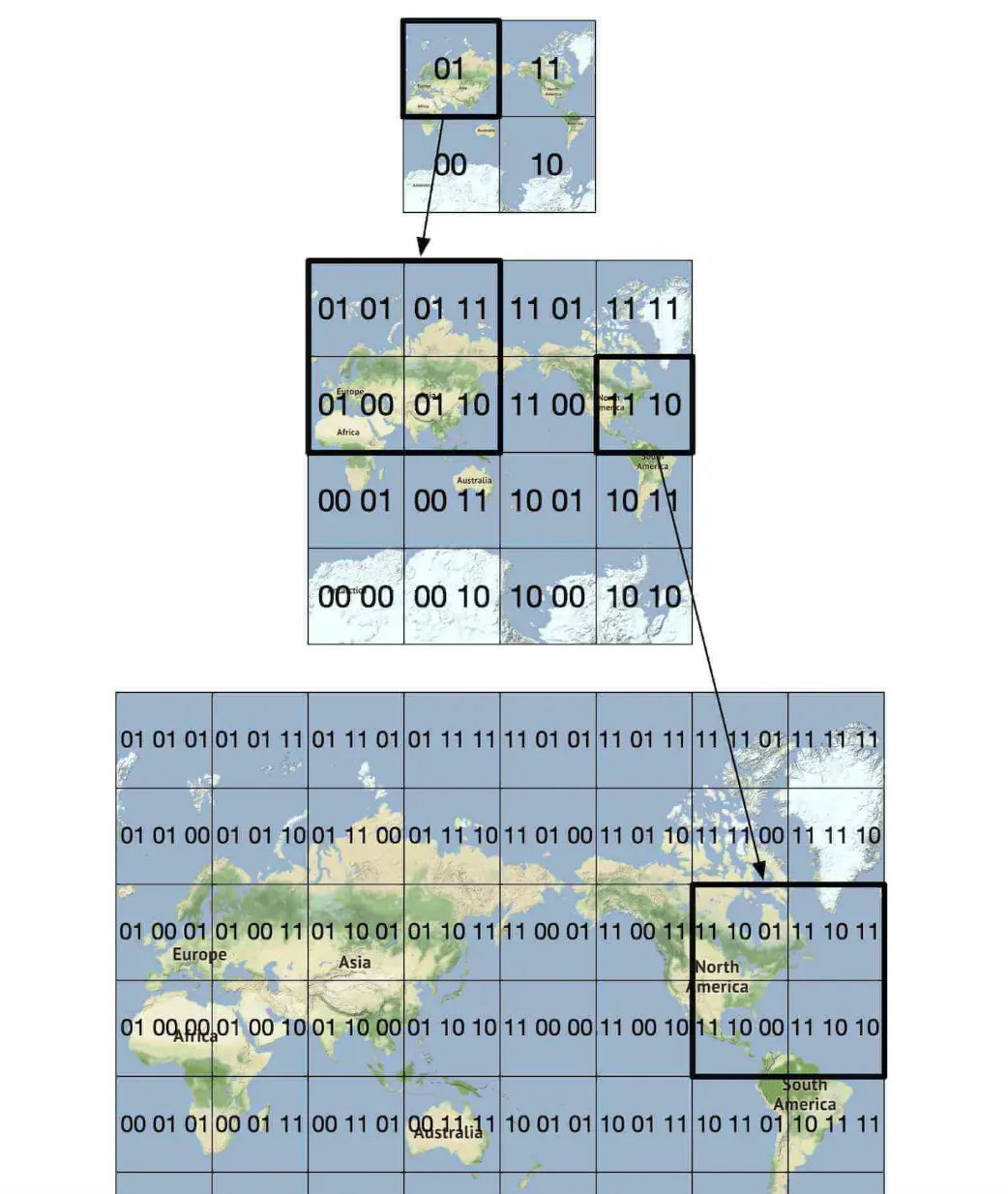

It depicts the world as a flattened surface and recursively sub-divides it into four quadrants: geohashing

Map rendering

Map rendering happens via tiling. Instead of rendering entire map as one big custom image, world is broken up into smaller tiles.

Client only downloads relevant tiles and renders them like stitching together a mosaic.

There are different tiles for different zoom levels. Client chooses appropriate tiles based on the client’s zoom level.

Eg, zooming out the entire world would download only a single 256x256 tile, representing the whole world.

Road data processing for navigation algorithms

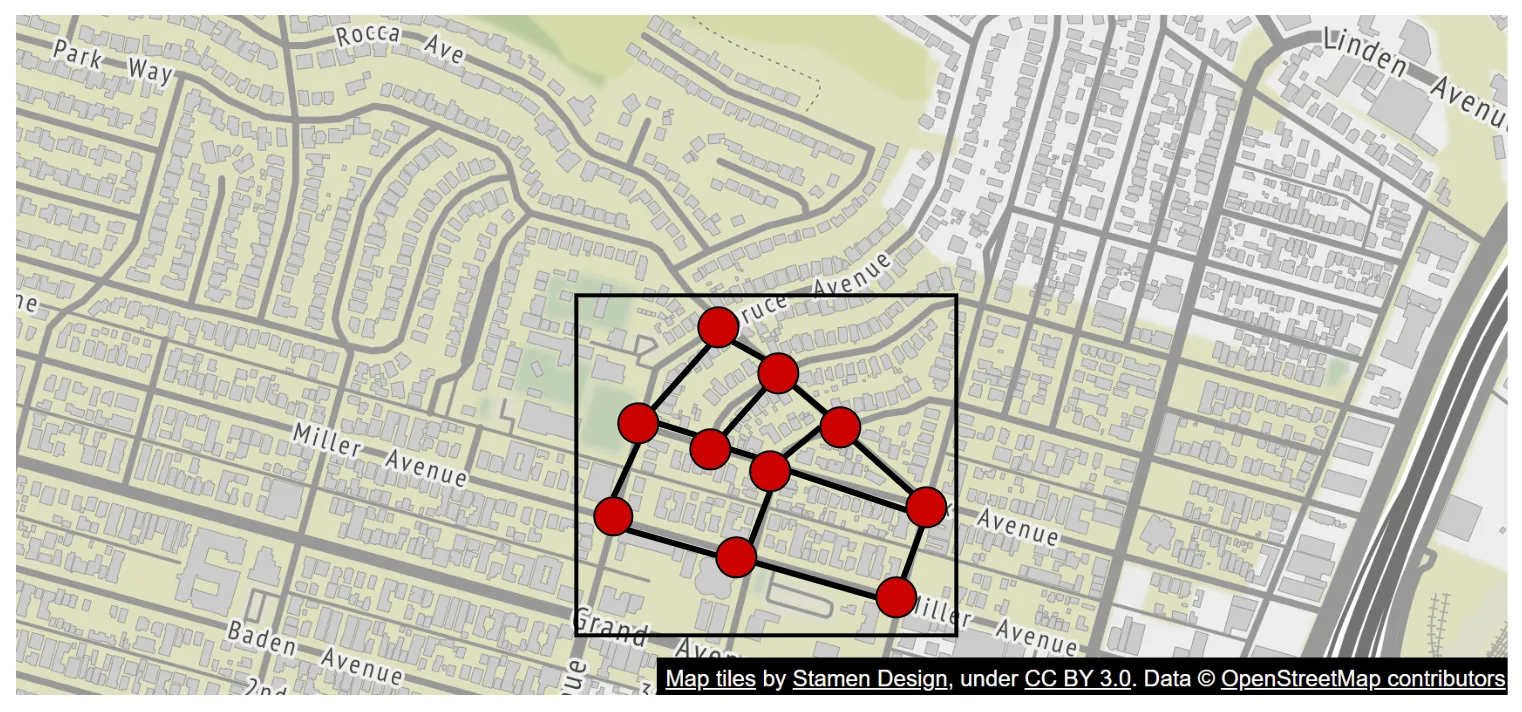

In most routing algorithms, intersections are represented as nodes and roads are represented as edges: road-representation

Most navigation algorithms use a modified version of Djikstra or A* algorithms.

Pathfinding performance is sensitive to the size of the graph. To work at scale, we can’t represent the whole world as a graph and run the algorithm on it.

Instead, we use a technique similar to tiling - we subdivide the world into smaller and smaller graphs.

Routing tiles hold references to neighboring tiles and algorithms can stitch together a bigger road graph as it traverses interconnected tiles: routing-tiles

This technique enables us to significantly reduce memory bandwidth and only load the tiles we need for the given source/destination pair.

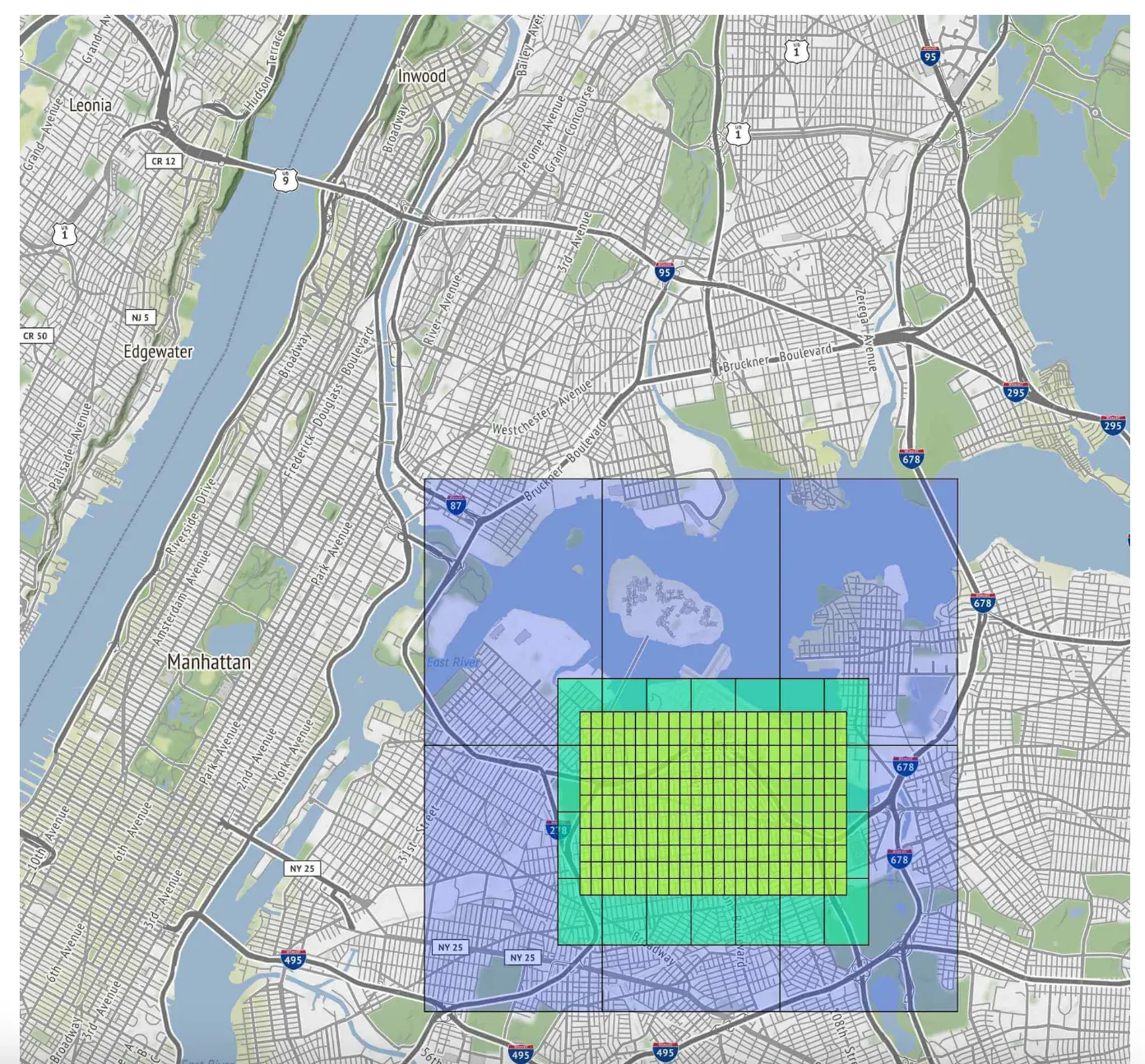

However, for larger routes, stitching together small, detailed routing tiles would still be time/memory consuming. Instead, there are routing tiles with different level of detail and the algorithm uses the appropriately-detailed tiles, based on the destination we’re headed for: map-routing-hierarchical

Back-of-the-envelope estimation

For storage, we need to store:

Estimated QPS for navigation requests - 1bil DAU at 35min of usage per week -> 5bil minutes per day. Assuming gps update requests are batched, we arrive at 200k QPS and 1mil QPS at peak load

Step 2 - Propose High-Level Design and Get Buy-In

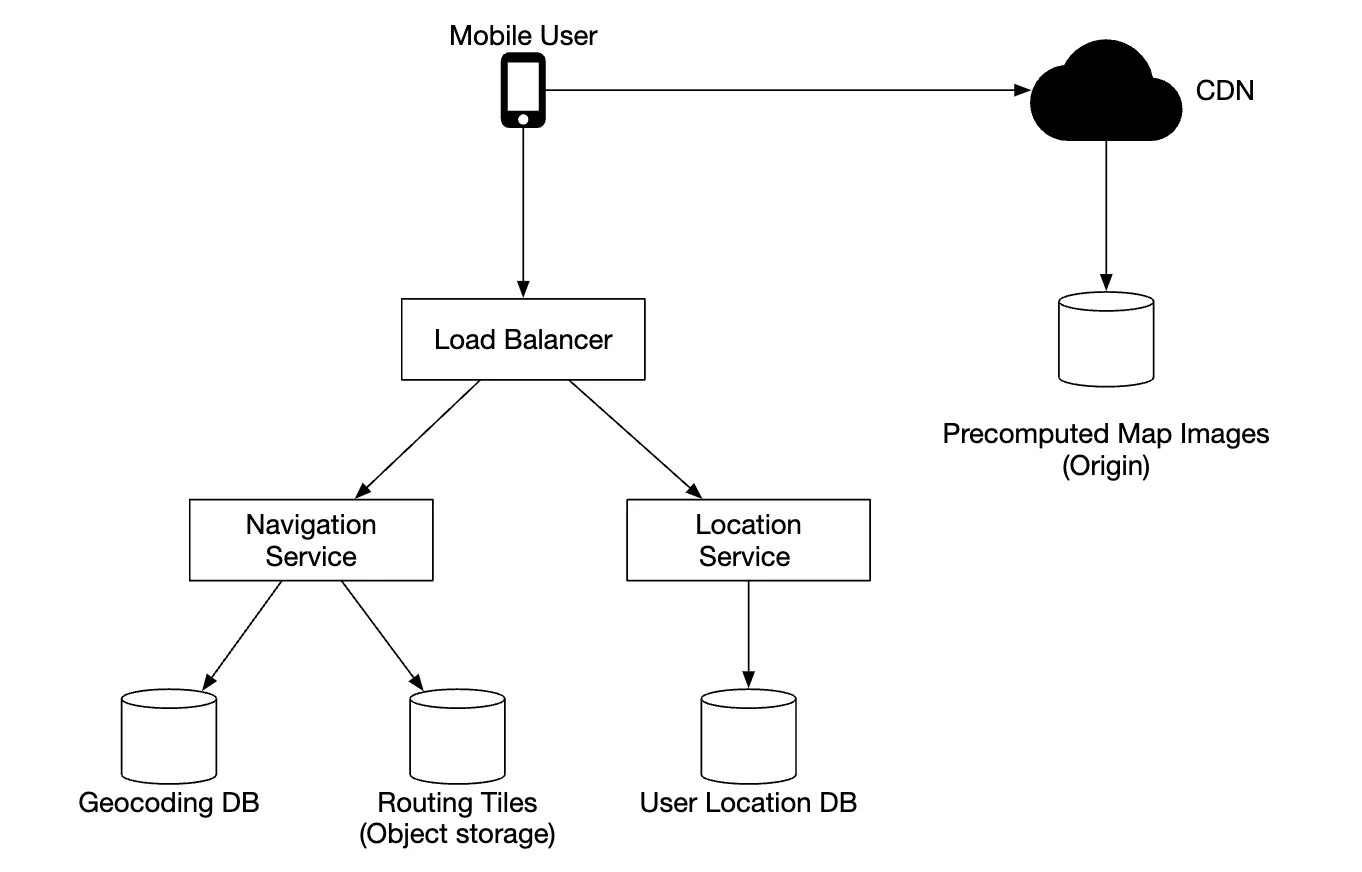

high-level-design

Location service

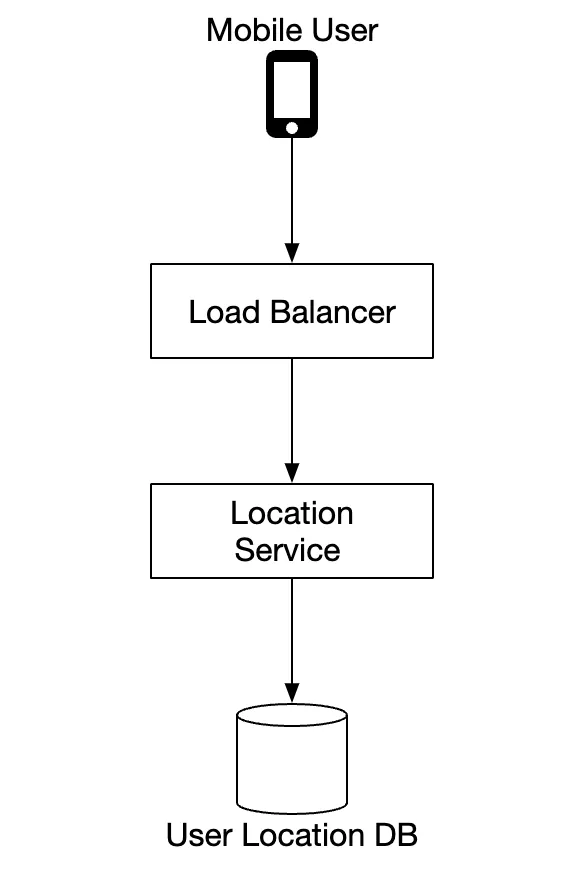

location-service

It is responsible for recording a user’s location updates:

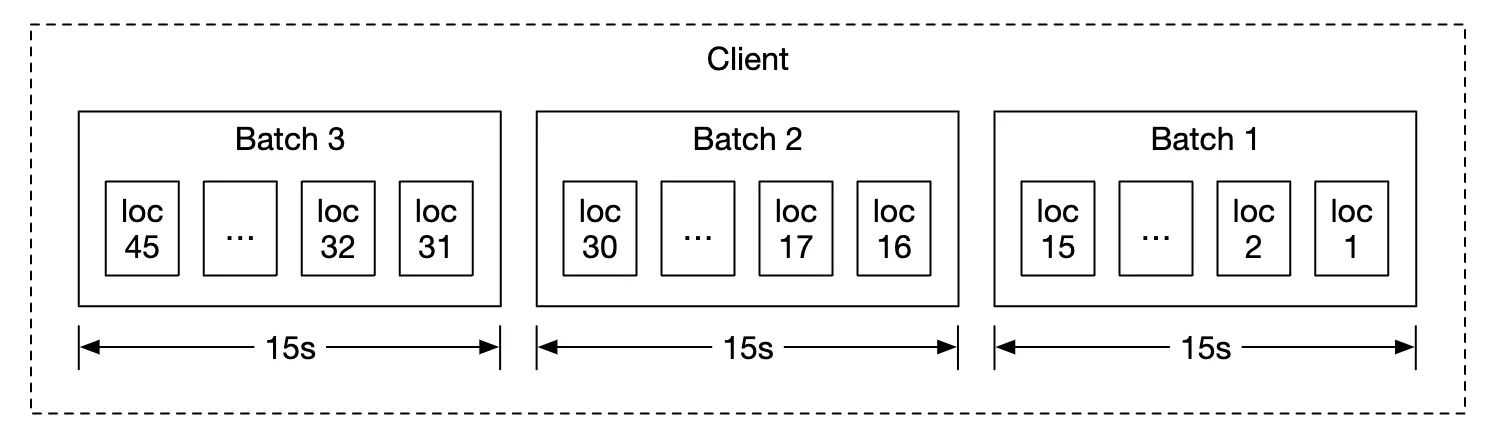

Instead of sending location updates to the server all the time, we can batch the updates on the client-side and send batches instead: location-update-batches

Despite this optimization, for a system of Google Maps scale, load will still be significant. Therefore, we can leverage a database, optimized for heavy writes such as Cassandra.

We can also leverage Kafka for efficient stream processing of location updates, meant for further analysis.

Example location update request payload:

POST /v1/locations
Parameters
  locs: JSON encoded array of (latitude, longitude, timestamp) tuples.

This component is responsible for finding fast routes between A and B in a reasonable time (a little bit of latency is okay). Route need not be the fastest, but accuracy is important.

Example request payload:

GET /v1/nav?origin=1355+market+street,SF&destination=Disneyland

Example response:

{
  "distance": { "text": "0.2 mi", "value": 259 },
  "duration": { "text": "1 min", "value": 83 },
  "end_location": { "lat": 37.4038943, "Ing": -121.9410454 },
  "html_instructions": "Head <b>northeast</b> on <b>Brandon St</b> toward <b>Lumin Way</b><div style=\"font-size:0.9em\">Restricted usage road</div>",
  "polyline": { "points": "_fhcFjbhgVuAwDsCal" },
  "start_location": { "lat": 37.4027165, "lng": -121.9435809 },
  "geocoded_waypoints": [
    {
      "geocoder_status": "OK",
      "partial_match": true,
      "place_id": "ChIJwZNMti1fawwRO2aVVVX2yKg",
      "types": ["locality", "political"]
    },
    {
      "geocoder_status": "OK",
      "partial_match": true,
      "place_id": "ChIJ3aPgQGtXawwRLYeiBMUi7bM",
      "types": ["locality", "political"]
    }
  ],
  "travel_mode": "DRIVING"
}

Traffic changes and reroutes are not taken into consideration yet, those will be tackled in the deep dive section.

Map rendering

Holding the entire data set of mapping tiles on the client-side is not feasible as it’s petabytes in size.

They need to be fetched on-demand from the server, based on the client’s location and zoom level.

When should new tiles be fetched - while user is zooming in/out and during navigation, while they’re going towards a new tile.

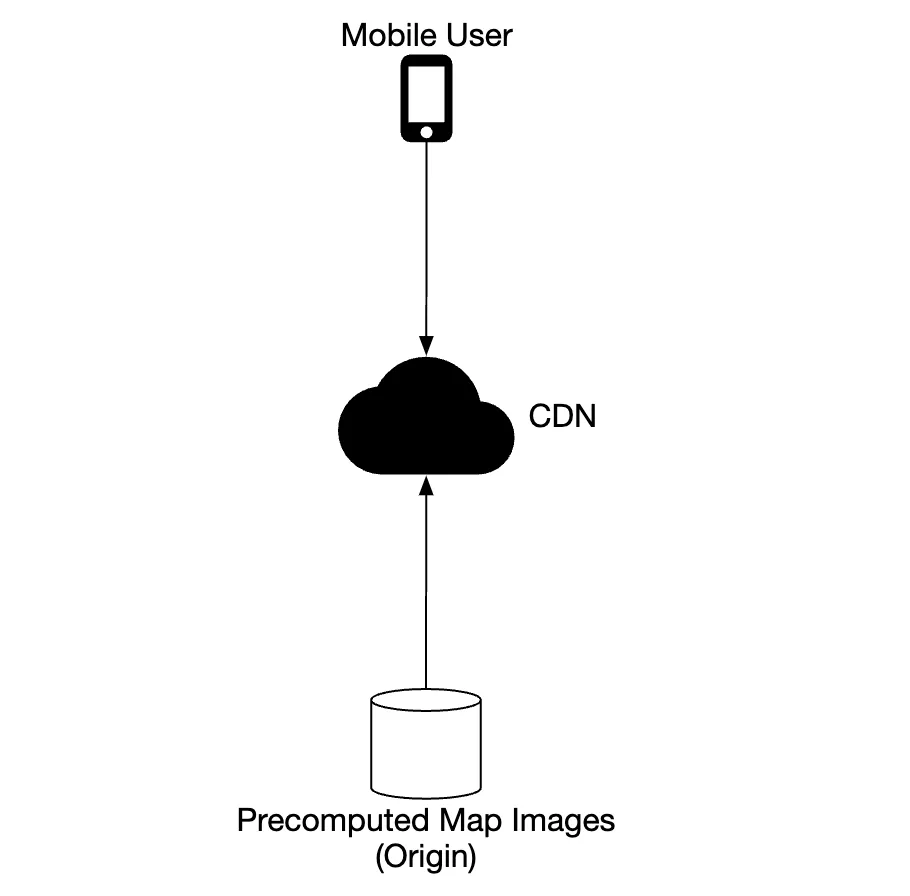

How should the map tiles be served to the client?

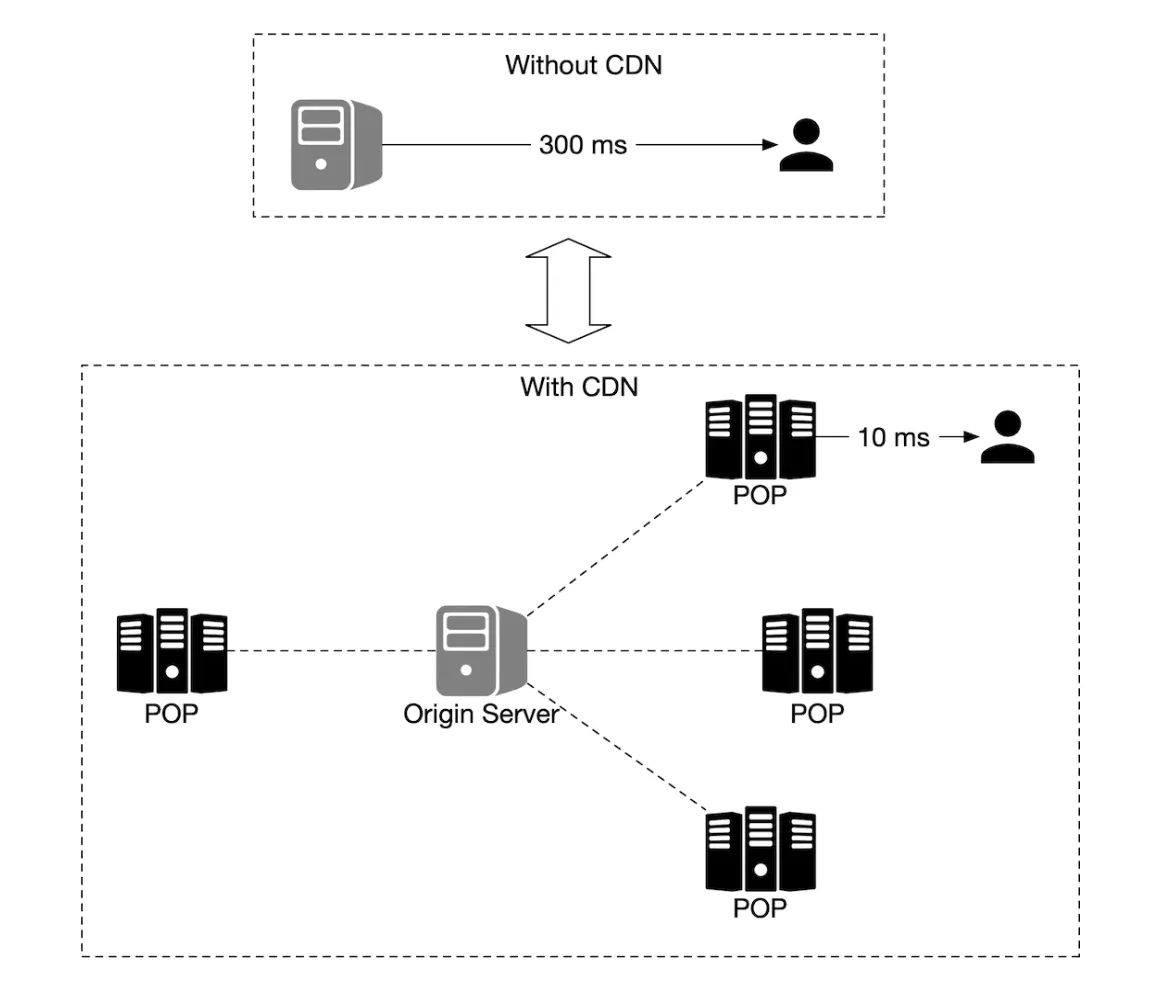

CDNs enable users to fetch map tiles from point-of-presence servers (POP) which are closest to users in order to minimize latency: cdn-vs-no-cdn

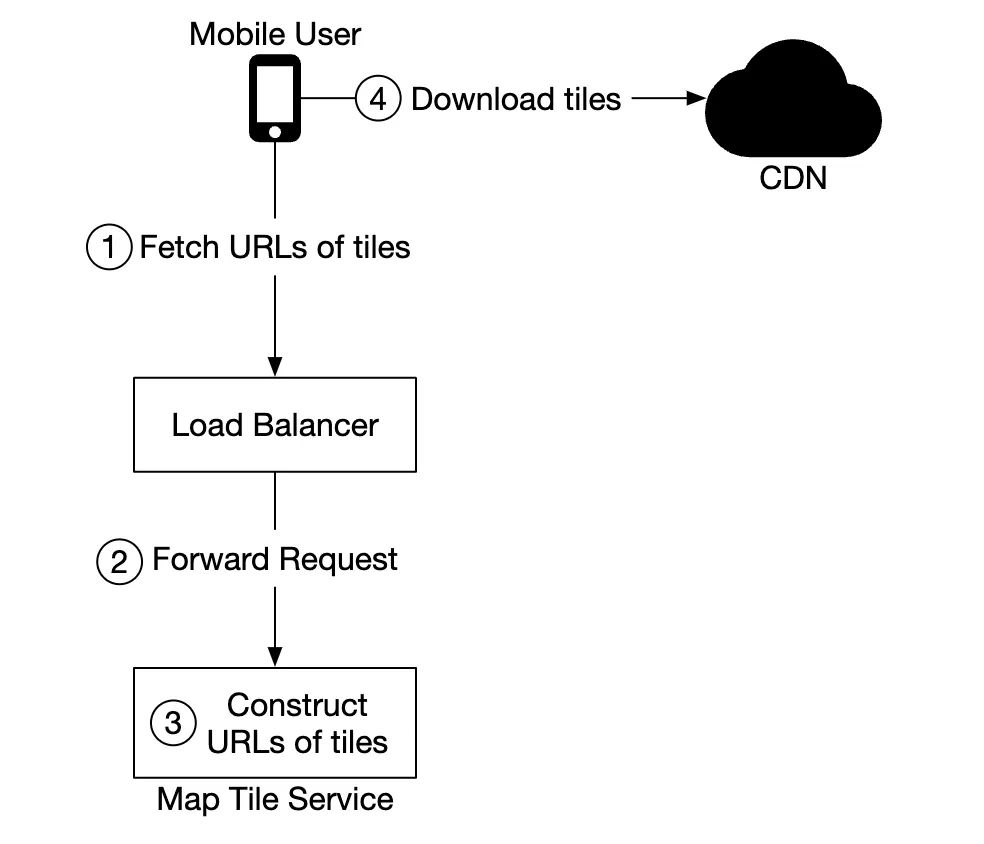

Options to consider for determining map tiles:

Since we encode the grids in geohash, and there is one unique geohash per grid, computationally it is very efficient to go from the client’s location (in latitude and longitude) and zoom level to the geohash, for the map tile. This calculation can be done on the client and we can fetch any static image tile from the CDN. For example, the URL for the image tile of Google headquarter could look like this: https://cdn.map-provider.com/tiles/9q9hvu.png

Step 3 - Design Deep Dive

Data model

Let’s discuss how we store the different types of data we’re dealing with.

Routing tiles

Initial road data set is obtained from different sources. It is improved over time based on location updates data.

The road data is unstructured. We have a periodic offline processing pipeline, which transforms this raw data into the graph-based routing tiles our app needs.

Instead of storing these tiles in a database as we don’t need any database features. We can store them in S3 object storage, while caching them agressively.

We can also leverage libraries to compress adjacency lists into binary files efficiently.

User location data

User location data is very useful for updaring traffic conditions and doing all sorts of other analysis.

We can use Cassandra for storing this kind of data as its nature is to be write-heavy.

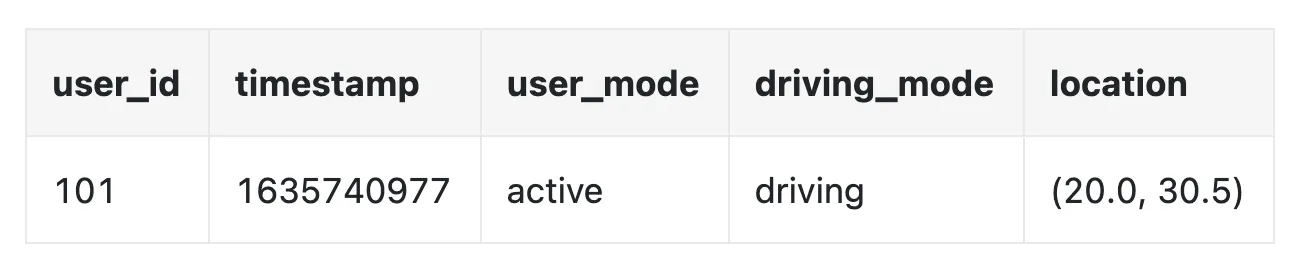

Example row: user-location-data-row

Geocoding database

This database stores a key-value pair of lat/long pairs and places.

We can use Redis for its fast read access speed, as we have frequent read and infrequent writes.

Precomputed images of the world map

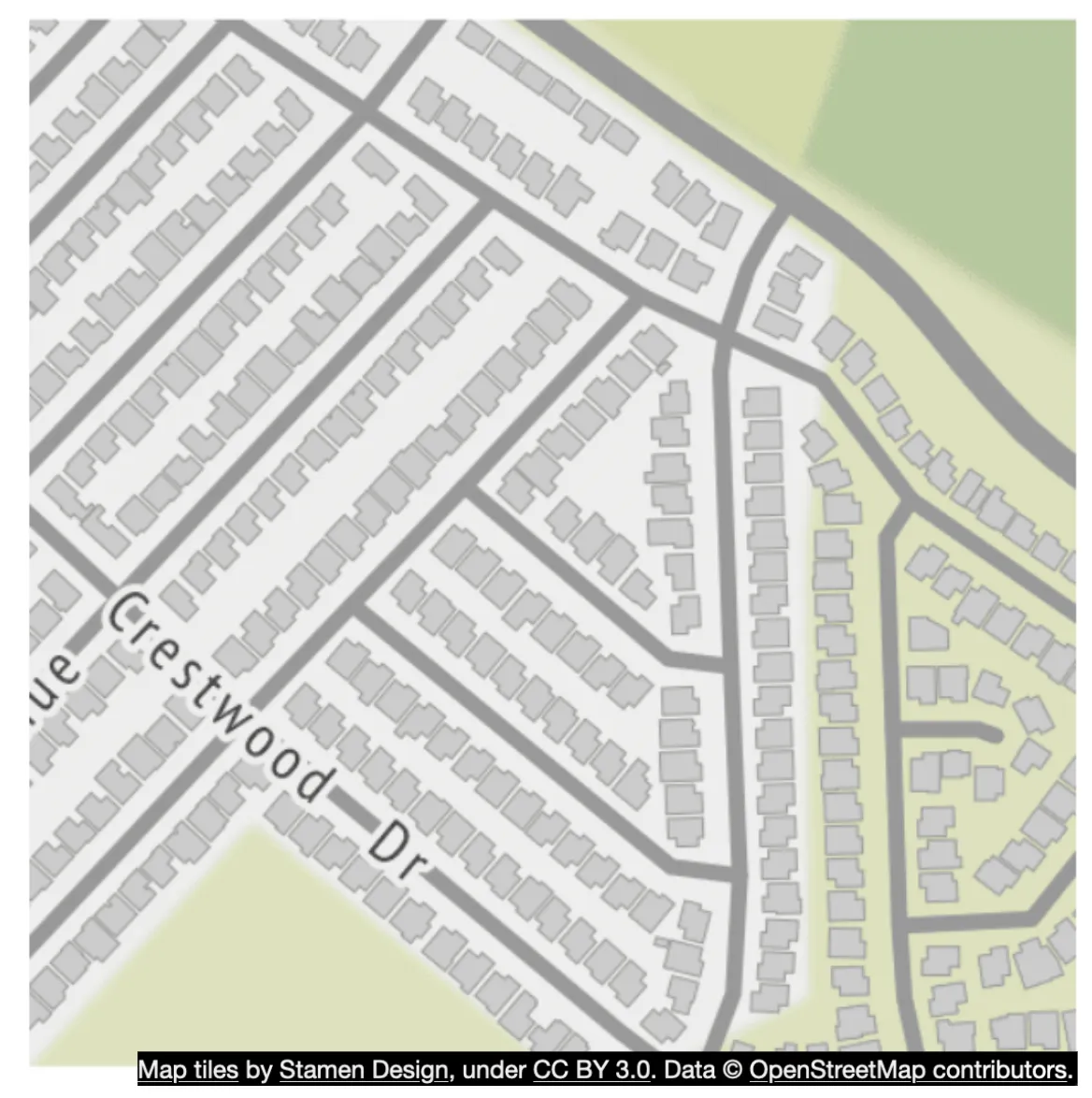

As we discussed, we will precompute map tiling images and store them in CDN. precomputed-map-tile-image

Services

Location service

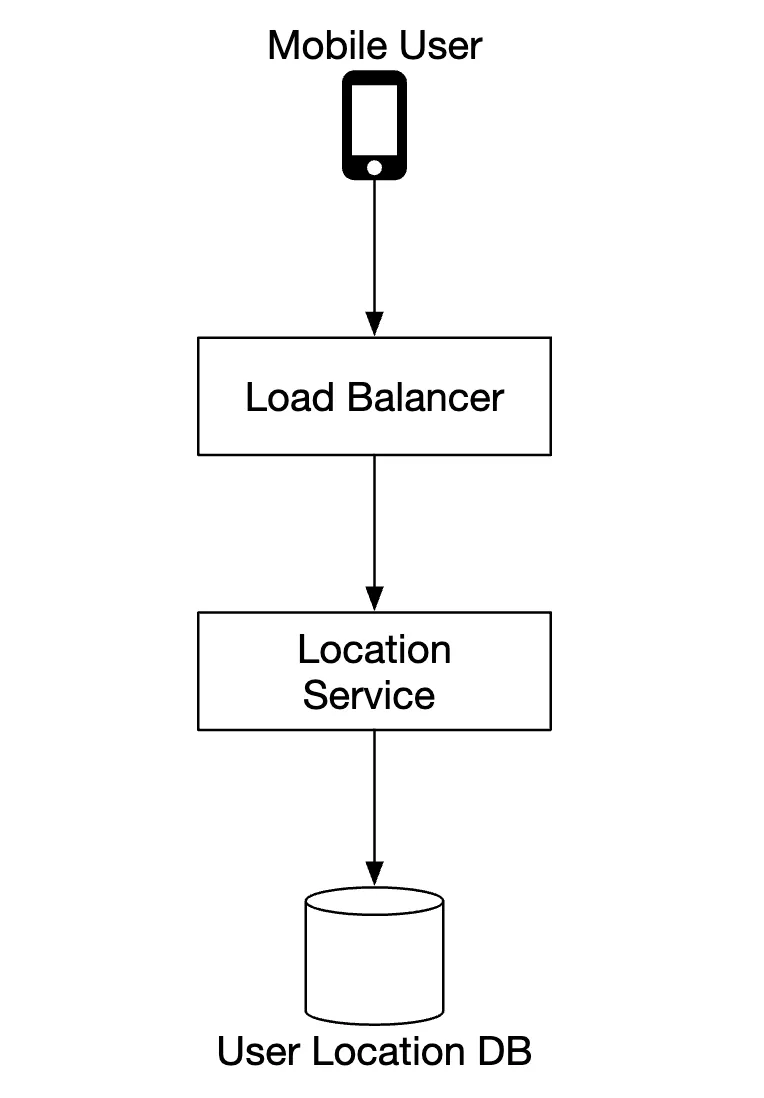

Let’s focus on the database design and how user location is stored in detail for this service. location-service-diagram

We can use a NoSQL database to facilitate the heavy write load we have on location updates. We prioritize availability over consistency as user location data often changes and becomes stale as new updates arrive.

We’ll choose Cassandra as our database choice as it nicely fits all our requirements.

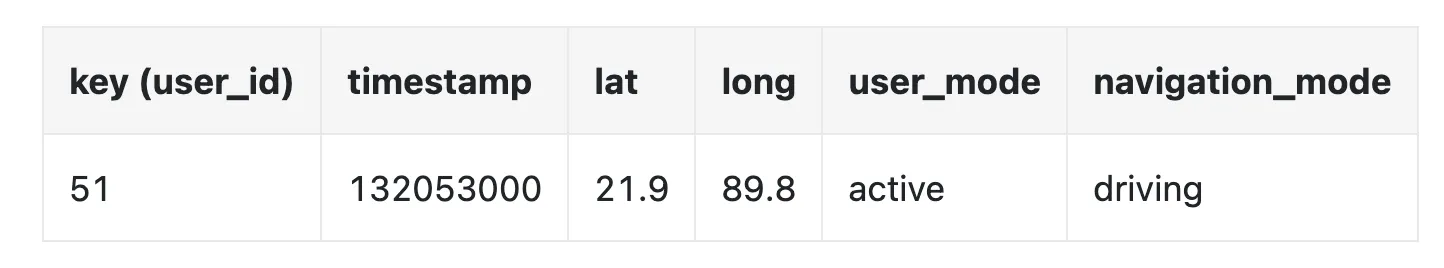

Example row we’re going to store: user-location-row-example

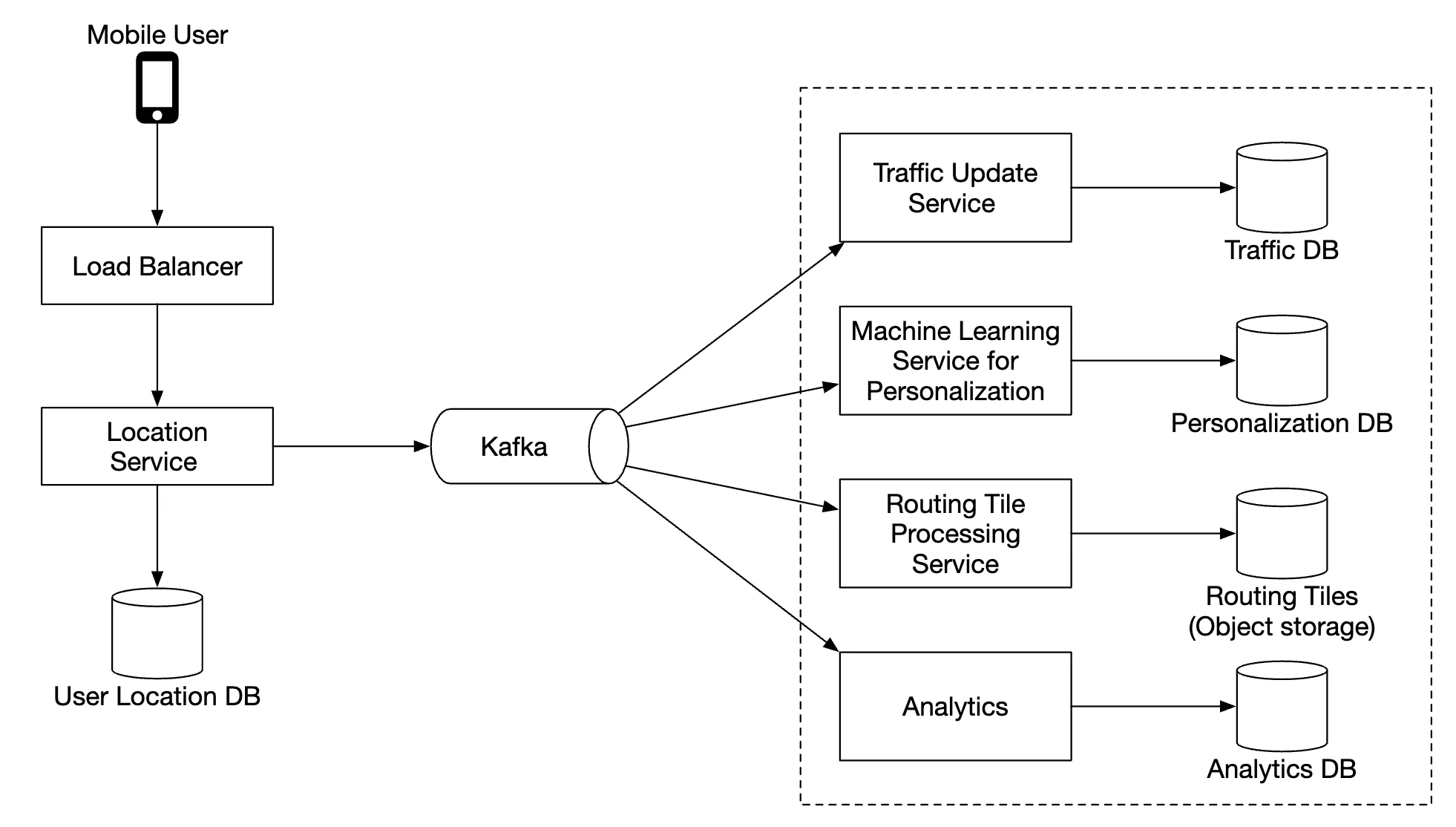

We also leverage Kafka to stream location updates to various other service which need the location updates for various purposes: location-update-streaming

Rendering map

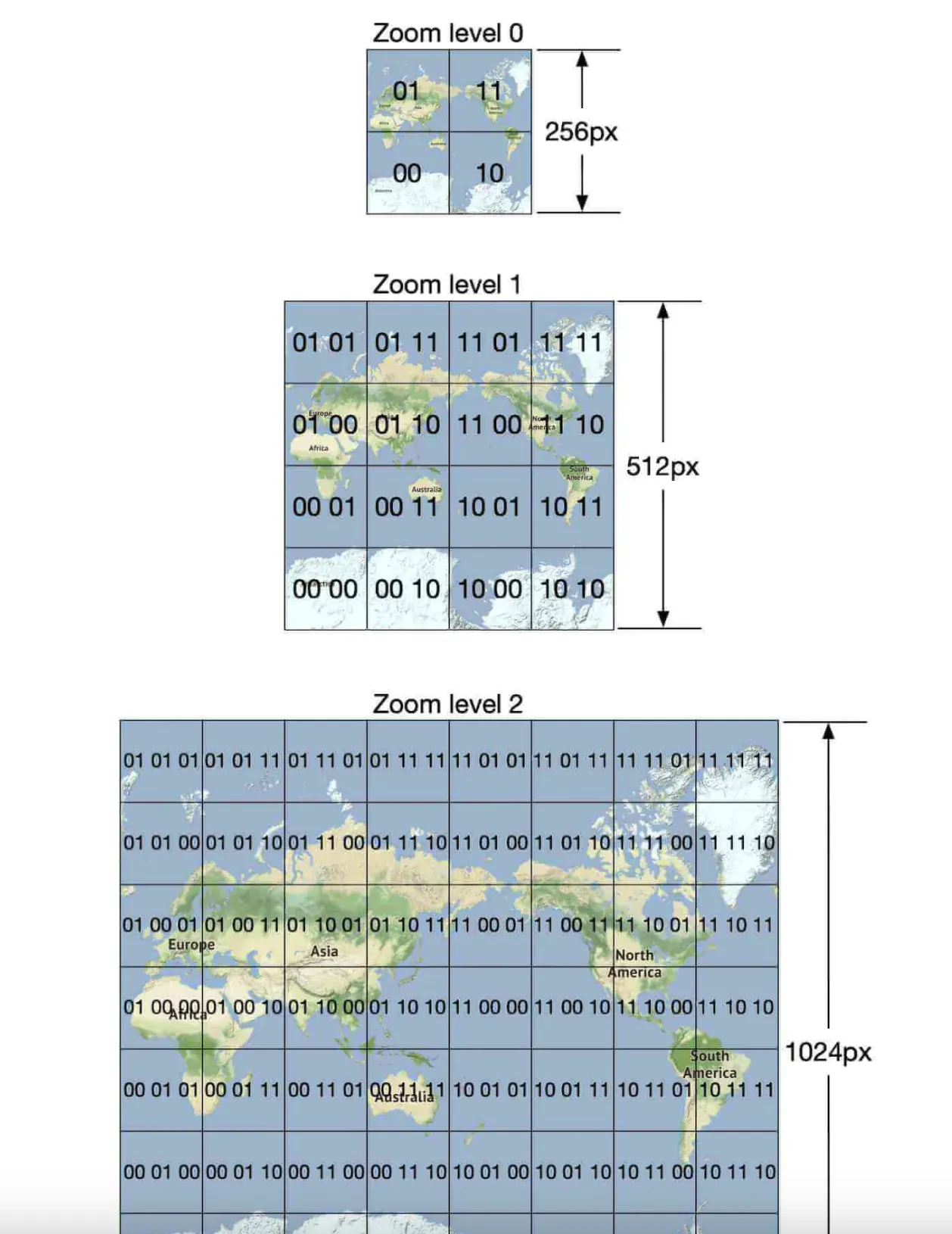

Map tiles are stored at various zoom levels. At the lowest zoom level, the entire world is represented by a single 256x256 tile.

As zoom levels increase, the number of map tiles quadruples: zoom-level-increases

One optimization we can use is to not send the entire image information over the network, but instead represent tiles as vectors (paths & polygons) and let the client render the tiles dynamically.

This will have substantial bandwidth savings.

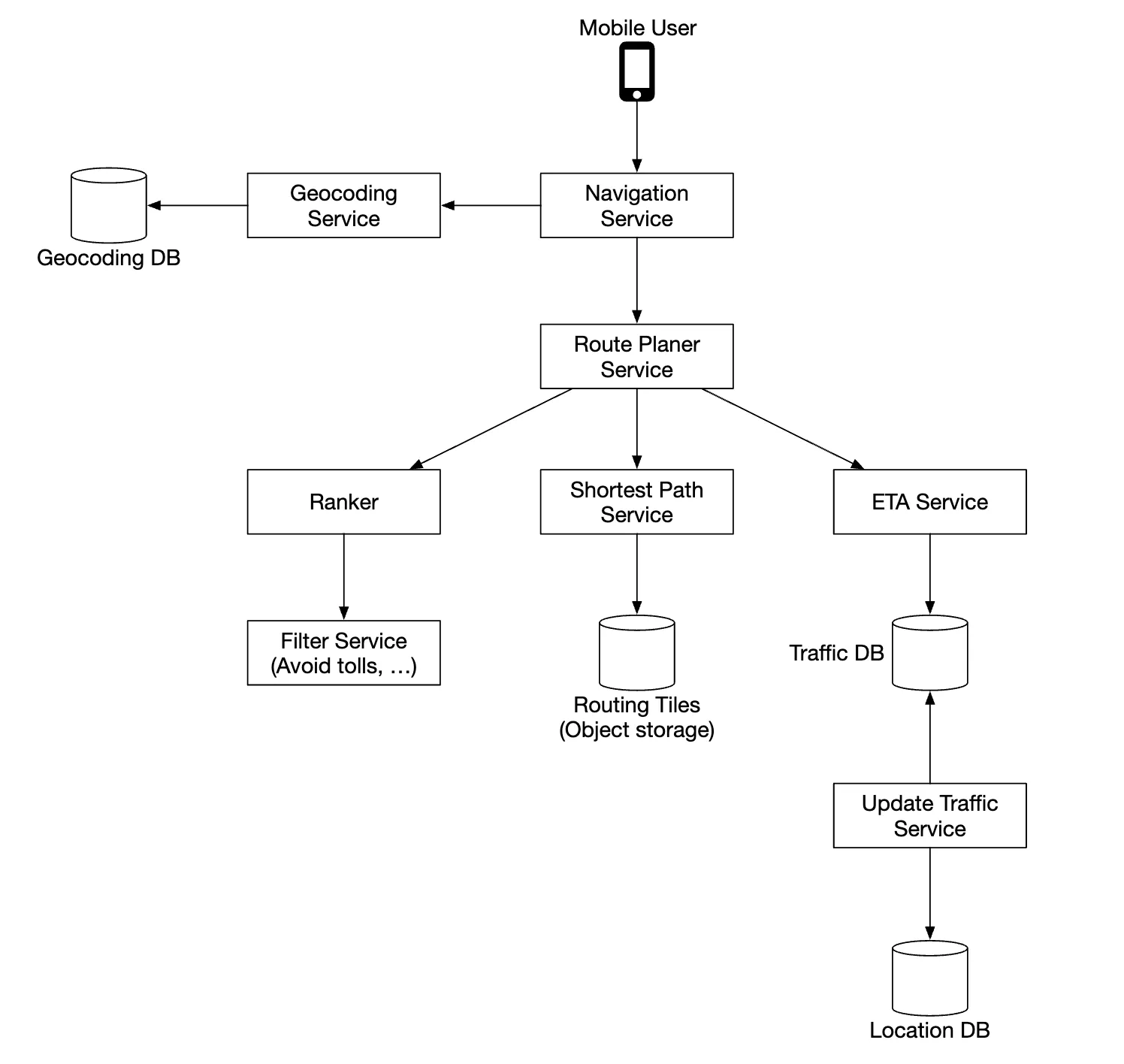

This service is responsible for finding the fastest routes: navigation-service

Let’s go through each component in this sub-system.

First, we have the geocoding service which resolves an address to a location of lat/long pair.

Example request:

https://maps.googleapis.com/maps/api/geocode/json?address=1600+Amphitheatre+Parkway,+Mountain+View,+CA

Example response:

{
  "results": [
    {
      "formatted_address": "1600 Amphitheatre Parkway, Mountain View, CA 94043, USA",
      "geometry": {
        "location": {
          "lat": 37.4224764,
          "lng": -122.0842499
        },
        "location_type": "ROOFTOP",
        "viewport": {
          "northeast": {
            "lat": 37.4238253802915,
            "lng": -122.0829009197085
          },
          "southwest": {
            "lat": 37.4211274197085,
            "lng": -122.0855988802915
          }
        }
      },
      "place_id": "ChIJ2eUgeAK6j4ARbn5u_wAGqWA",
      "plus_code": {
        "compound_code": "CWC8+W5 Mountain View, California, United States",
        "global_code": "849VCWC8+W5"
      },
      "types": ["street_address"]
    }
  ],
  "status": "OK"
}

The route planner service computes a suggested route, optimized for travel time according to current traffic conditions.

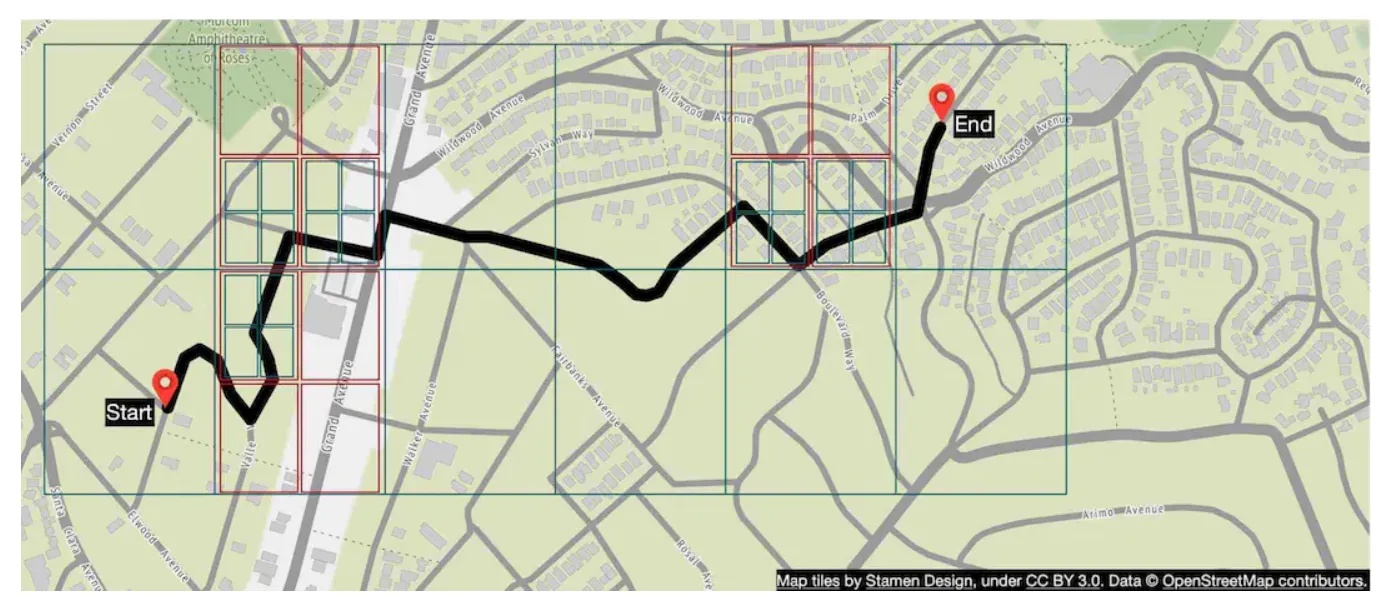

The shortest-path service runs a variation of the A* algorithm against the routing tiles in object storage to compute an optimal path:

The ETA service is called by the route planner to get estimated time based on machine learning algorithms, predicting ETA based on traffic data.

The ranker service is responsible to rank different possible paths based on filters, passed by the user, ie flags to avoid toll roads or freeways.

The updater service asynchronously update some of the important databases to keep them up-to-date.

Improvement - adaptive ETA and rerouting

One improvement we can do is to adaptively update in-flight routes based on newly available traffic data.

One way to implement this is to store users who are currently navigating through a route in the database by storing all the tiles they’re supposed to go through.

Data might look like this:

user_1: r_1, r_2, r_3, …, r_k
user_2: r_4, r_6, r_9, …, r_n
user_3: r_2, r_8, r_9, …, r_m
...
user_n: r_2, r_10, r21, ..., r_l

If a traffic accident happens on some tile, we can identify all users whose path goes through that tile and re-route them.

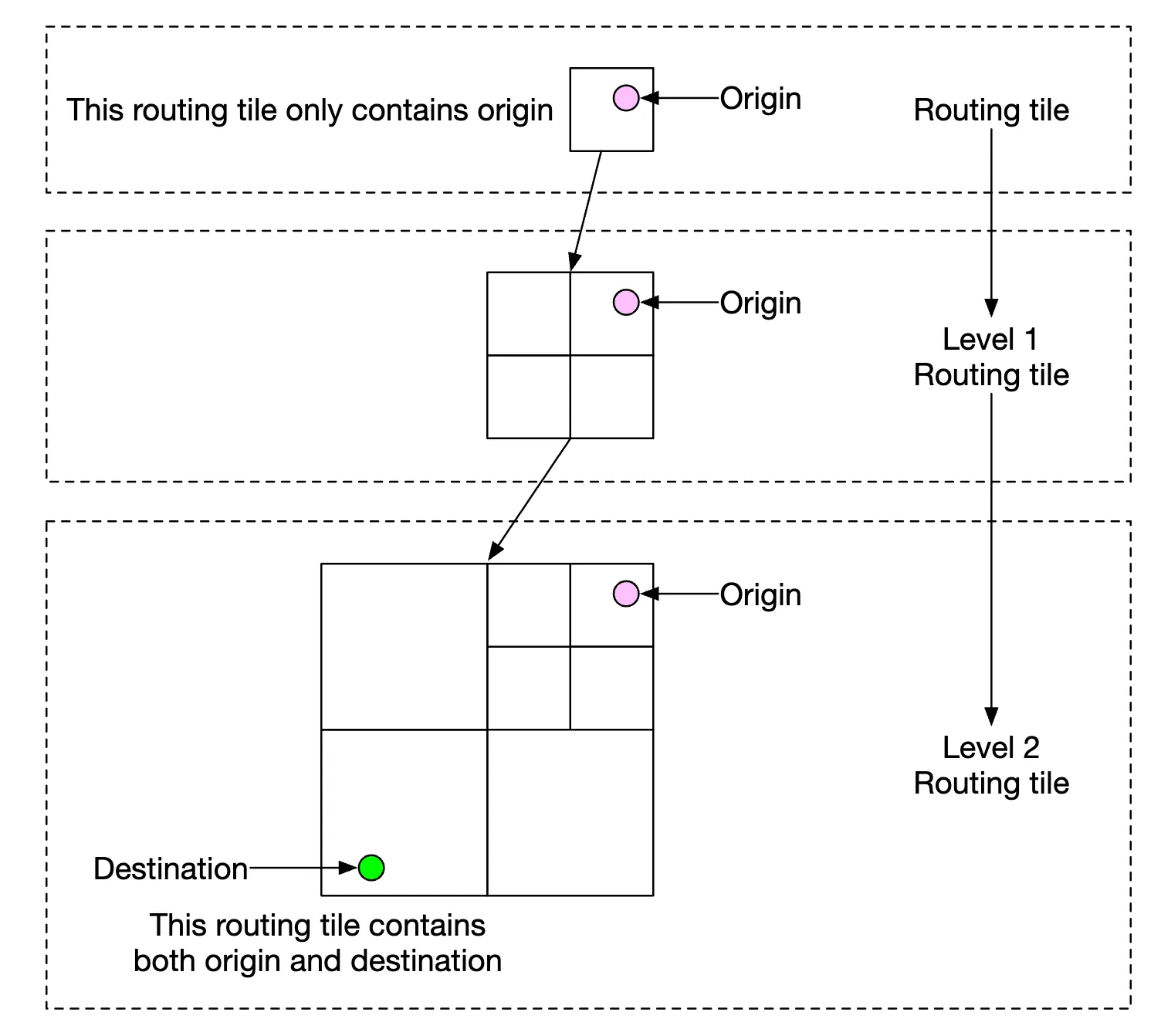

To reduce the amount of tiles we store in the database, we can instead store the origin routing tile and several routing tiles in different resolution levels until the destination tile is also included:

user_1, r_1, super(r_1), super(super(r_1)), ...

adaptive-eta-data-storage

Using this, we only need to check if the final tile of a user includes the traffic accident tile to see if user is impacted.

We can also keep track of all possible routes for a navigating user and notify them if a faster re-route is available.

Delivery protocols

We have several options, which enable us to proactively push data to clients from the server:

Step 4 - Wrap Up

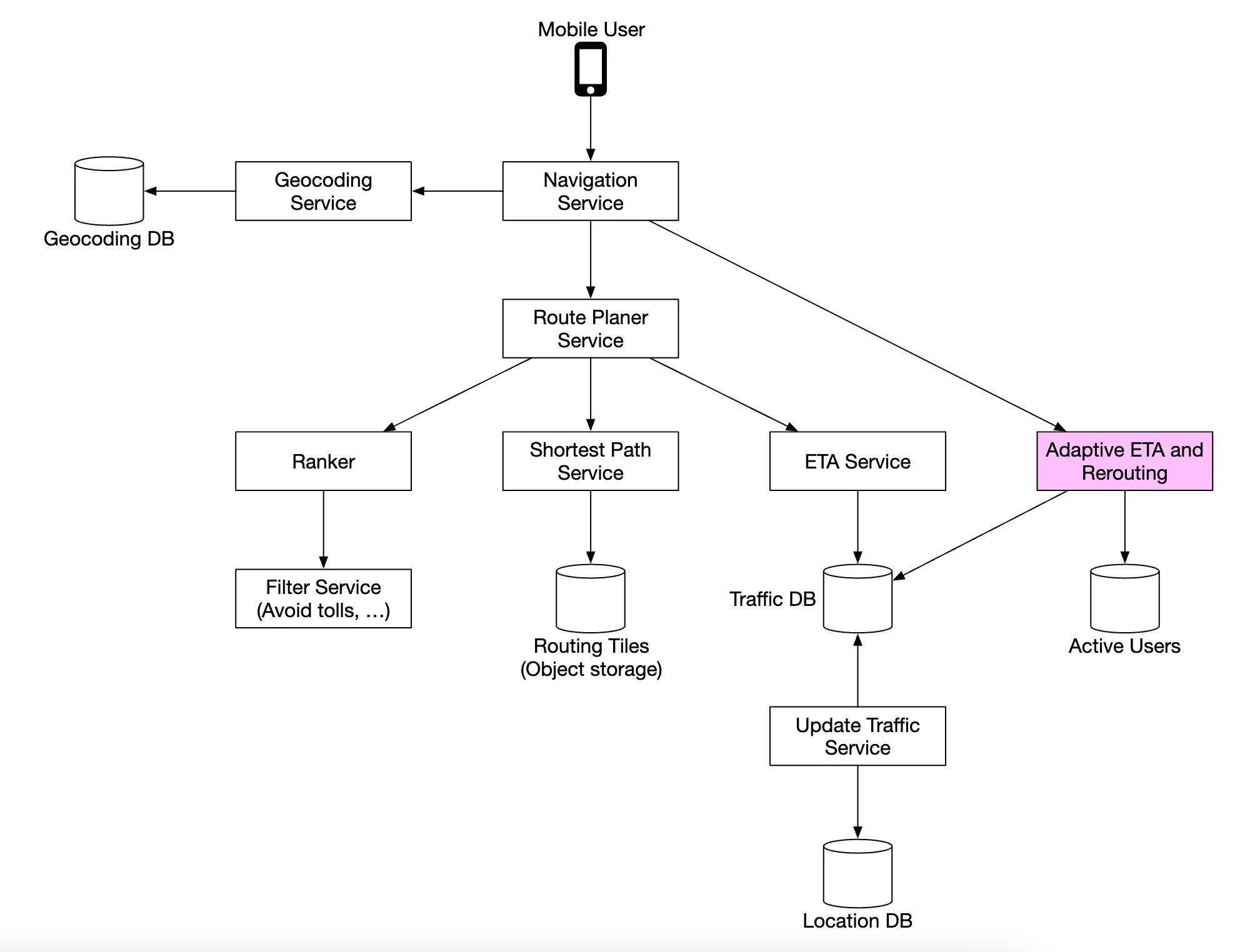

This is our final design: final-design

One additional feature we could provide is multi-stop navigation which can be sold to enterprise customers such as Uber or Lyft in order to determine optimal path for visiting a set of locations.
